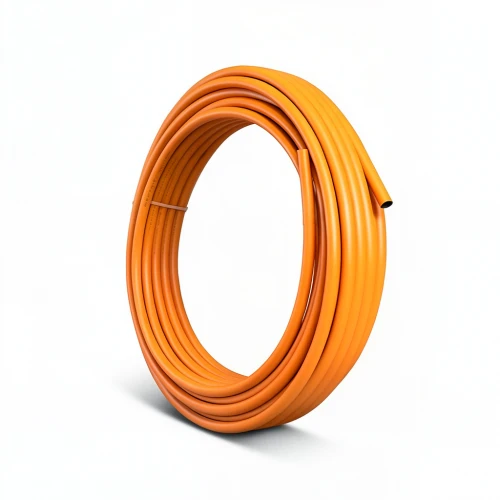

Almona HDPE Plastic Coil Pipe Nominal Pressure 10 Bar [PE 100] OD 90 mm Thickness 8.2 mm Color Orange

Al-Mona presents premium HDPE coil pipes, meticulously crafted for gas supply networks across the Kingdom of Bahrain. Manufactured from high-density polyethylene (PE100), these pipes deliver exceptional strength, durability, and resistance to high temperatures and pressure, ensuring reliable performance in the demanding conditions of the region.

Designed to withstand corrosive environments, these orange pipes resist chemical corrosion and rust, making them ideal for both above-ground and underground installations. With a nominal pressure of 10 bar and an outside diameter of 90 mm, they are suitable for a wide range of applications, from residential gas lines to industrial projects in Manama, Muharraq, and Riffa.

Key Features

• Pressure rating: 10 bar
• Outside diameter: 90 mm
• Wall thickness: 8.2 mm
• Material grade: PE100 (MRS 10 MPa)
• Design stress: 5 MPa (safety factor C=2)
• SDR 11 standard dimensional ratio
• Weight: 2.14 kg/m
• Available in coils of 100, 200, 300 meters (up to 1500 m) for sizes 16-32 mm; 100-meter coils for sizes 40-160 mm
• Manufactured according to ISO 4437

Whether you are expanding a gas distribution network or upgrading existing infrastructure, Al-Mona HDPE coil pipes offer long-lasting performance and easy handling, backed by quality assurance. Choose reliability for your projects in Bahrain.
