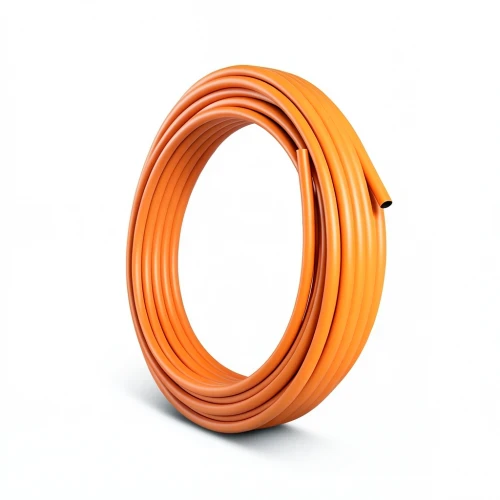

Almona HDPE Coil Pipe PN 10 Bar [PE 100] Outer Diameter 40 mm Thickness 3.7 mm Color Orange

Introducing the Al-Mona HDPE coil pipe, a premium solution for gas supply networks across Bahrain. Manufactured to the stringent ISO 4437 standard, this pipe is crafted from high-density polyethylene (PE100), offering exceptional strength, durability, and resistance to corrosion and breakage. With an orange outer diameter of 40 mm and a wall thickness of 3.7 mm, it delivers reliable performance under pressure up to 10 bar, making it a trusted choice for both residential and commercial projects in Manama, Muharraq, and Riffa.

Key Features

• Material: High-density polyethylene (PE100) – minimum required strength (MRS) of 10 MPa
• Dimensions: Outer diameter 40 mm, wall thickness 3.7 mm, material weight 0.43 kg/m
• Pressure rating: 10 bar (PN 10) with design stress of 5 MPa and safety factor C=2
• Standard dimensional ratio: SDR 11
• Manufactured according to ISO 4437 for gas supply applications
• Available in coil lengths of 100 meters (from 40 mm to 160 mm) and up to 1500 meters for smaller sizes (16 mm to 32 mm)
• Orange color for easy identification in gas networks

Built to withstand high temperatures and pressure, this HDPE coil pipe is ideal for the demanding climate of Bahrain, ensuring long-lasting performance in underground installations and trenchless applications. Its flexibility and resistance to impact make it easy to handle and install, reducing project time and costs. Choose Al-Mona for quality and reliability in every meter of piping.
