Stranded Electric Wire CU/PVC, 185mm Size, 450/750 Rated Voltage, White Color | Jeddah Cables
(260 Product Views)

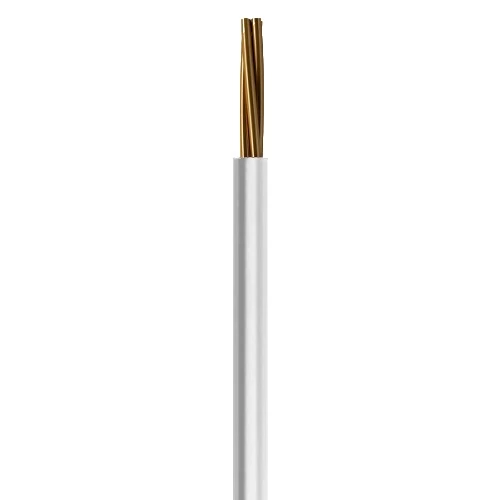

Stranded copper electrical wire (CU/PVC), 185 mm2 cross-sectional area, 450/750 volts, manufactured by Jeddah Cables Company, the insulation material protects the copper core from damage and corrosion caused by friction or other external factors, color is white.
Product description
Electrical wire (CU/PVC), manufactured by Jeddah Cables Company. Insulated with Polyvinyl Chloride (PVC), a type of plastic renowned for its excellent insulating properties and resistance to water and moisture. It forms an exceptional insulating layer around the conductor, preventing electrical current leakage and protects the copper core from damage and corrosion caused by friction or other external factors. This provides superior protection for people and devices against electric shock, extends the lifespan of the wire, and slows down its degradation. Additionally, it is considered a cost-effective option compared to other insulation types. Suitable for internal wiring in electric motors, transformers, other electrical appliances, and lighting. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Conductor Material: Copper
- Conductor Shape: Soft Annealed Stranded Wires
- Insulation Material: Polyvinyl Chloride (PVC) 85 ºC (or LSHF)
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 185 mm
- Nominal Insulation Thickness: 2 mm
- Approx Overall Diameter: 20.1 mm
- Weight: 1765 kg/km
- Max DC Conductor Resistance at 20°C: 0.0991 ohm/km
- Current Rating Laid in Conduits: 364 Ampere
- Current Rating Laid in Free Air: 545 Ampere
- Color: White
- Standard: IEC 60227
