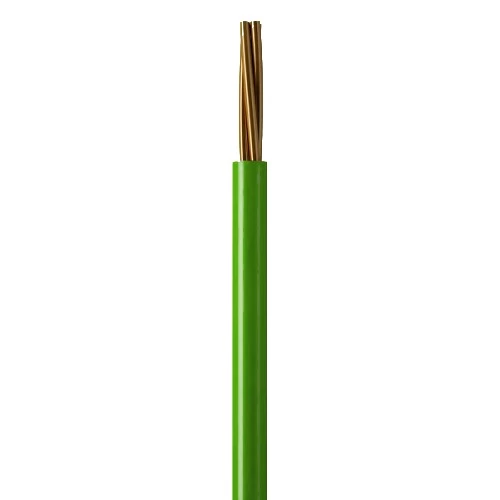

150sq mm Single Core Stranded Wire CU/PVC, 450/750 Voltage Rating, Green Color | Jeddah Cables
(513 Product Views)
Stranded copper electrical wire (CU/PVC), 150 mm2 cross-sectional area, 450/750 volts, polyvinyl chloride (PVC) insulation material, green color, suitable for internal wiring in electric motors, transformers, manufactured by Jeddah Cables Company.
Product description
Stranded copper electrical wire (CU/PVC), manufactured by Jeddah Cables Company. Insulated with Polyvinyl Chloride (PVC), a type of plastic renowned for its excellent insulating properties and resistance to water and moisture. It forms an exceptional insulating layer around the conductor, preventing electrical current leakage and protects the copper core from damage and corrosion caused by friction or other external factors. This provides superior protection for people and devices against electric shock, extends the lifespan of the wire, and slows down its degradation. Additionally, it is considered a cost-effective option compared to other insulation types. Suitable for internal wiring in electric motors, transformers, other electrical appliances, and lighting. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Conductor Material: Copper
- Conductor Shape: Soft Annealed Stranded Wires
- Insulation Material: Polyvinyl Chloride (PVC) 85 ºC (or LSHF)
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 150 mm2
- Nominal Insulation Thickness: 1.8 mm
- Approx Overall Diameter: 18.1 mm
- Weight: 1425 kg/km
- Max DC Conductor Resistance at 20°C: 0.124 ohm/km
- Current Rating Laid in Conduits: 316 Ampere
- Current Rating Laid in Free Air: 473 Ampere
- Color: Green
- Standard: IEC 60227
