كيبل 35 ملي نحاس اربع خطوط مجدول 600/1000 فولت، مسلح STA، عزل PVC، (ازرق، بني، اسود، رمادي) | كابلات الرياض
(1905 عدد مشاهدات المنتج)
-size_height_45.webp "يوماتس"){kind=logo}

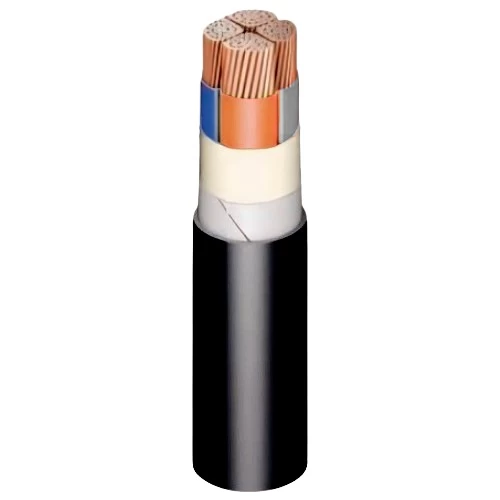

4 Core stranded copper cable STA armored, PVC insulated, 4×35 mm2, used to conduct electrical current in various domestic, commercial and industrial applications, where there is a risk of mechanical damage, (Blue, Brown, Black, Gray) color, Produced by Riyadh Cables Company.
وصف المنتج
4 core STA armed cable (CU/PVC/STA/PVC), stranded copper conductor, Produced by Riyadh Cables Company. Armored with double steel tape (STA) to give it mechanical strength to protect it from external pressures that fall on the cable, such as soil weight and passing cars. Also Insulated with two layers of high-quality PVC (polyvinyl chloride) material, the first layer provides excellent electrical insulation. The sheath also provides protection for the cable from corrosion and external factors. Intended for fixed installations, indoors and outdoors, also used to conduct electrical current in various domestic, commercial and industrial applications, where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Insulation Material: PVC
- Outer Sheath: PVC
- Voltage: 600/1000 volts
- Wire Type: Sectoral Stranded
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 35 mm2
- Number of Wires: 7
- Nominal Insulation Thickness: 1.2 mm
- Armouring: Double Steel Tape (STA)
- Nominal Steel Tape Thickness: 0.2 mm
- Nominal Sheath Thickness : 1.9 mm
- Approx Overall Diameter : 29 mm
- Weight : 1975 kg/km
- Cable Length : 1000 meters
- Phase Core Color : Blue, Brown, Black, Gray
- Conformity According to International Standard: IEC 60502-1
