كيبل 25 ملي نحاس مجدول 3 خطوط 600/1000 فولت، مسلح STA، عزل PVC، (بني، اسود، رمادي) | كابلات الرياض
(2112 عدد مشاهدات المنتج)
-size_height_45.webp "يوماتس"){kind=logo}

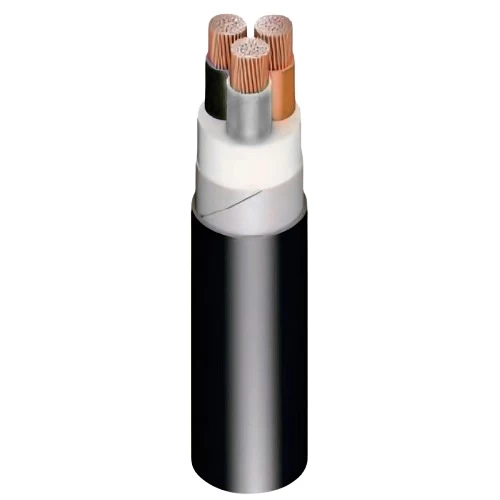

3 core STA armored cable (CU/PVC/STA/PVC), stranded copper, length 1000 meters, approx overall diameter 26 mm, Insulated with two layers of high-quality PVC material, the first layer provides excellent electrical insulation, (Brown, Black, Grey) color, Produced by Riyadh Cables Company, cross-sectional area 25 mm2.
وصف المنتج
3 core STA armored cable (CU/PVC/STA/PVC), stranded copper, Produced by Riyadh Cables Company, Armored with double steel tape (STA) to give it mechanical strength to protect it from external pressures that fall on the cable, such as soil weight and passing cars. Also Insulated with two layers of high-quality PVC (polyvinyl chloride) material, the first layer provides excellent electrical insulation. The sheath also provides protection for the cable from corrosion and external factors. Intended for fixed installations, indoors and outdoors, also used to conduct electrical current in various domestic, commercial and industrial applications, where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Insulation: PVC
- Sheath: PVC
- Voltage: 600/1000 volts
- Wire Type: Round Stranded
- Number of Cores: 3
- Size (Cross-Sectional Area): 25 mm2
- Number of Wires: 7
- Approx Conductor Diameter: 6.3 mm
- Nominal Insulation Thickness: 1.2 mm
- Armour: Double Steel Tape (STA)
- Nominal Steel Tape Thickness: 0.2 mm
- Nominal Sheath Thickness : 1.8 mm
- Approx Overall Diameter : 26 mm
- Weight : 1425 kg/km
- Length : 1000 meters
- Color : Brown, Black, Gray
- Conformity According to International Standard: IEC 60502-1
